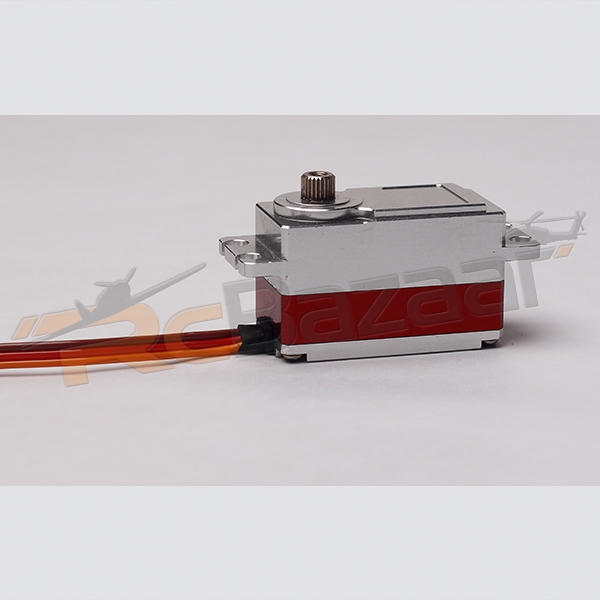

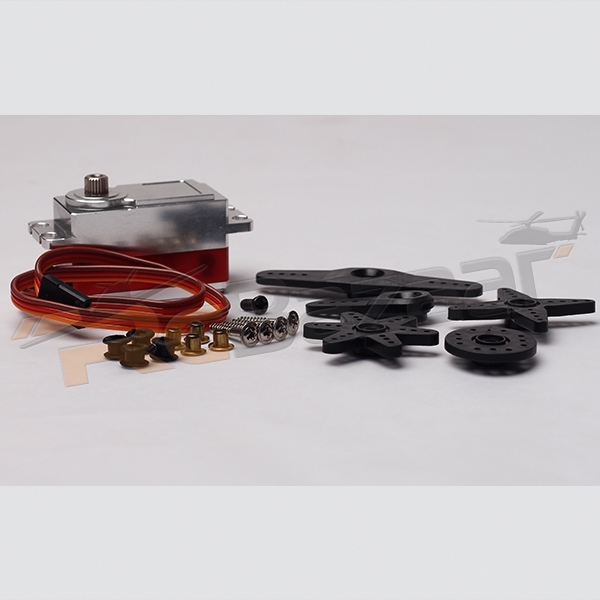

(AV052 HVCMG) Avionic High voltage 52g coreless metal gear Servo
SKU: RZ04617
Current rating is 0.00. Total votes 0.
This is a High Voltage, High Precision, High speed Metal Gear Full CNC Aluminium Shell servo made for your mid sized sizes gasser planes with high precision return to position system with a coreless motor
This Coreless digital metal gear standard sized servo features a programmable circuit and is perfect for 30 - 50cc or below airplanes and heli’s, the AV052 HVCMG is guaranteed to deliver higher resolution and it has a Stall Torque of 16.83kg.cm @ 6V.
FEATURE:
● High performance programmable digital coreless standard servo
● High-precision Taiwan-made aluminium gears with hard anodizing
● Full CNC aluminium Shell structure
● Dual ball bearings
● Waterproof
SPECIFICATION:
● Dead band: 1μs
● Working frequence: 1520μs / 330hz
● Motor: coreless motor
● Operating Speed (6.0V): 0.152sec/60°
● Operating Speed (8.4V): 0.123sec/60°
● Stall Torque (6.0V): 17.25 kg.cm (239.55oz/in)
● Stall Torque (8.4V): 20.32 kg-cm (281.89 oz/in)
● Dimensions: 40.5X20.5X36.5mm /1.59X0.80X1.43in
● Weight: 59.3g (2.09oz)

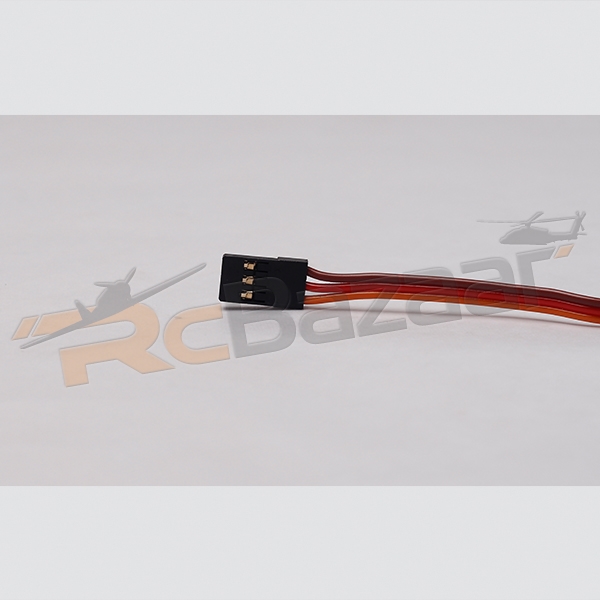

● Connector Wire Length: JR 265 mm (10.43in)
● Bearing: 2BB
