RcBazaar. Avionic RACER (CW) RS-2205 2300KV motor

Avionic RACER (CW) RS-2205 2300KV motor

SKU: RZ04657

Current rating is 4.50. Total votes 2.

View / Write review

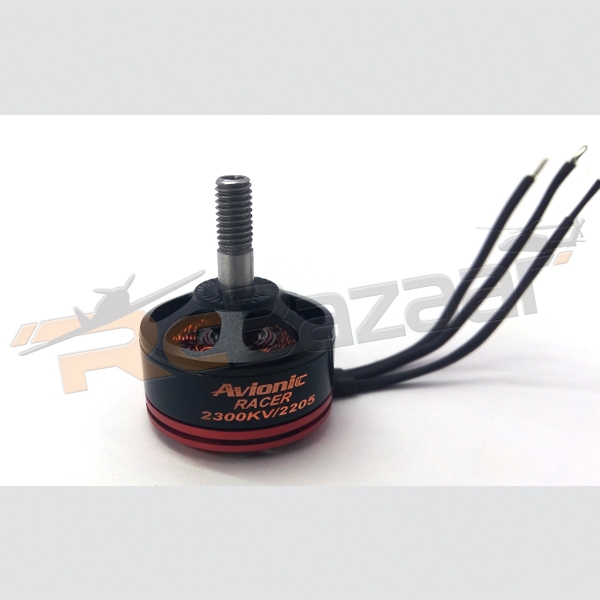

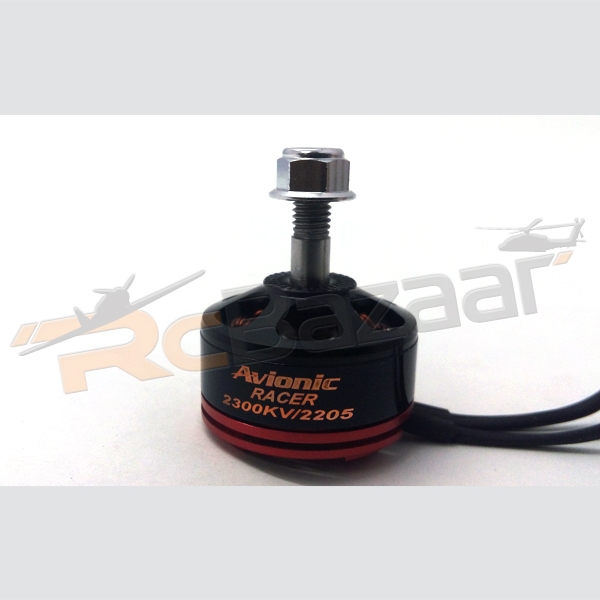

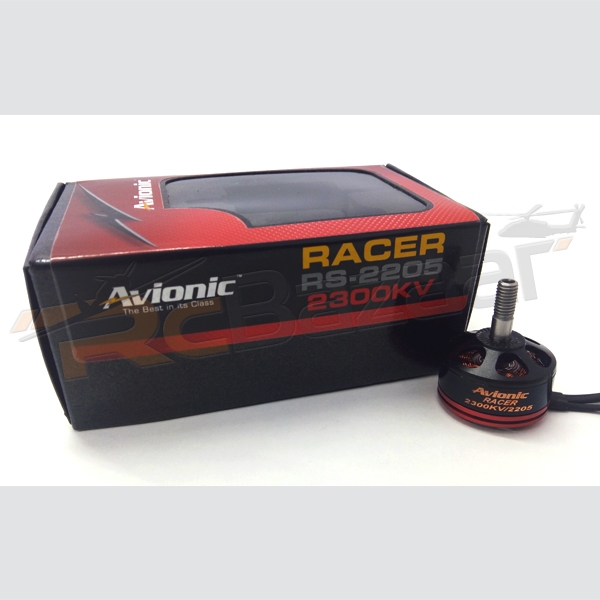

This is a Clockwise Avionic RACER RS-2205KV 2300KV motor
Introducing the Racer series of motors from Avionic. Specially made for 250 size quad racers these are super powerful and run on 4 cell lipos (14.8V). If you are planning to get into a competition then this is a right one for you.
Made from the highest quality magnets, casing and bearings this at the best available quality of motors at such a great value in the market till date.
These motors are specifically designed keeping in mind your racing and your need for speed.

Specification:
● No-Load voltage 10V
● No-Load current 1A
● Motor Kv: 1200 RPM / Volt
● NResistance: 56.1mΩ
● Weight: 31 Grams
● Shaft Diameter: 4.0 mm(0.157 in)
● Shaft Output Diameter: M5
● Suitable Props: 5x3 to 6x4
● Suitable for 250 racer quads
● Max Continuous Current: 35 Amps
● Max Continuous Power: 450 Watts
● Max efficiency: 95%

LOAD TEST REPORT

PROPS	VOLTAGE	CURRENT(A)	PULL(G)
5x3 GF	12	3.8	212
	12	5.8	320
	12	7.9	431
	12	10.3	520
	16	4.1	270
	16	9.4	533
	16	11.5	825
	16	15.8	803
5x4 GF	12	3.6	215
	12	5.7	321
	12	8.2	432
	12	12.6	591
	16	3.9	280
	16	11.8	623
	16	14.3	714
	16	19.5	910
5x4 KK	12	4.2	210
	12	7	309
	12	9.8	412
	12	15.5	583
	16	4.8	271
	16	11.5	515
	16	17.5	718
	16	24.6	965
5x4.5 FC	12	4.3	212
	12	7	303
	12	10.5	418
	12	12.4	512
	12	15.5	607
	16	4.8	271
	16	10.8	516
	16	16.3	712
	16	19.4	806
5x4.5 GN	12	3.9	211
	12	9.9	425
	12	13.4	515
	12	15.5	560
	16	3.3	203
	16	8.3	460
	16	18.9	830
	16	27.1	1021
