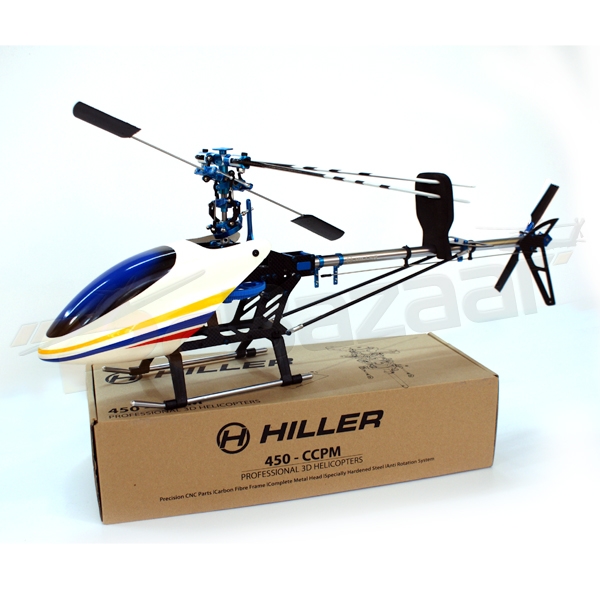

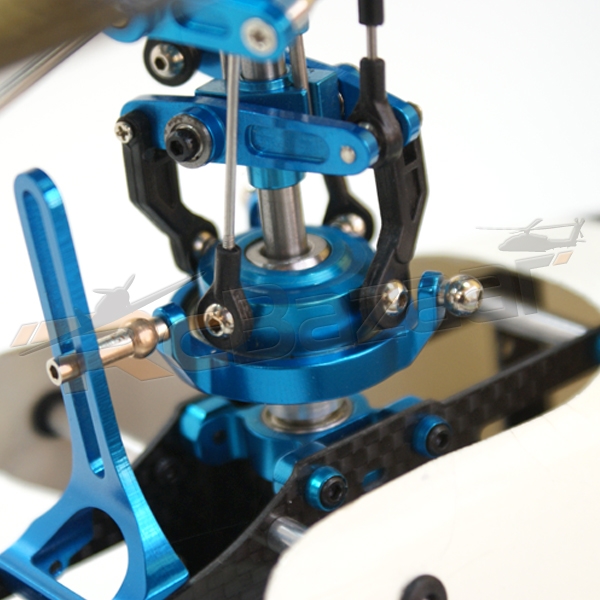

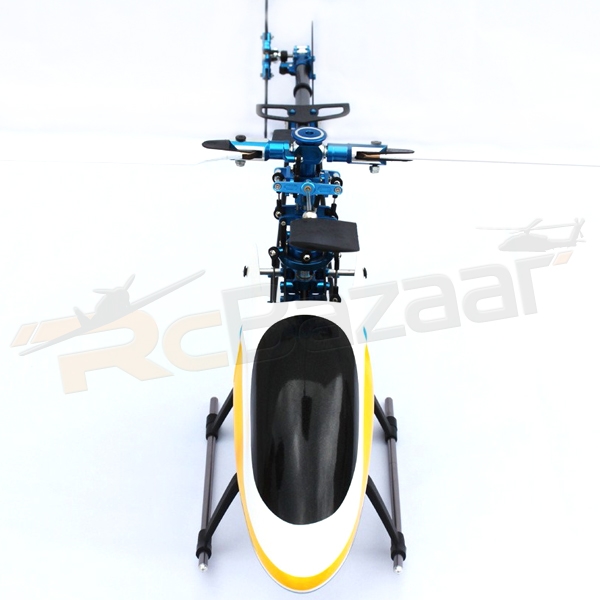

The Hiller 450 V2 comes in a super cool all Blue Metal and Carbon Fibre kit. The metal used has been treated for all ageing metallurgical factors thus giving you years of fun and performance from this heli. The kit is 80% pre- assembled and is for flyers looking for uncompromised quality, performance and value. The Swashplate is not crimped like any cheap chinese clone helis, the precision force fit bearing in the Swashplate not only gives smooth flights but also great for perfect 3D flying. For those uneventful crash spare parts are available at a great value.

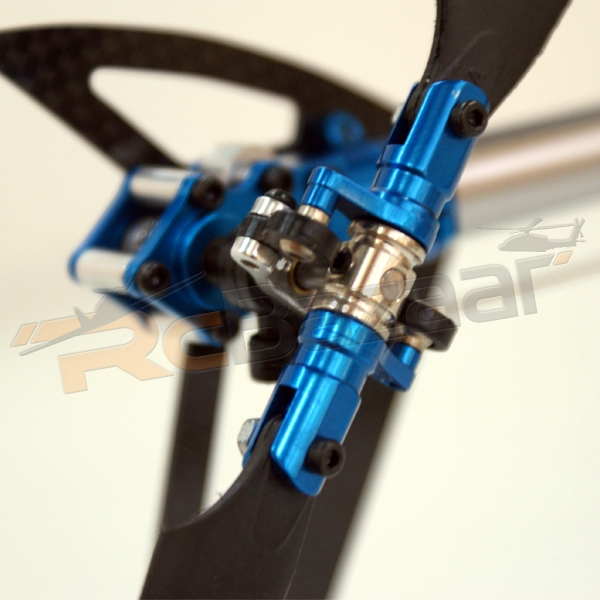

The tail control system comes with its unique ball design. This design is basic feature with Hiller helis where others use this feature as a upgrade.
Other basic features of the Hiller 450 V2 are

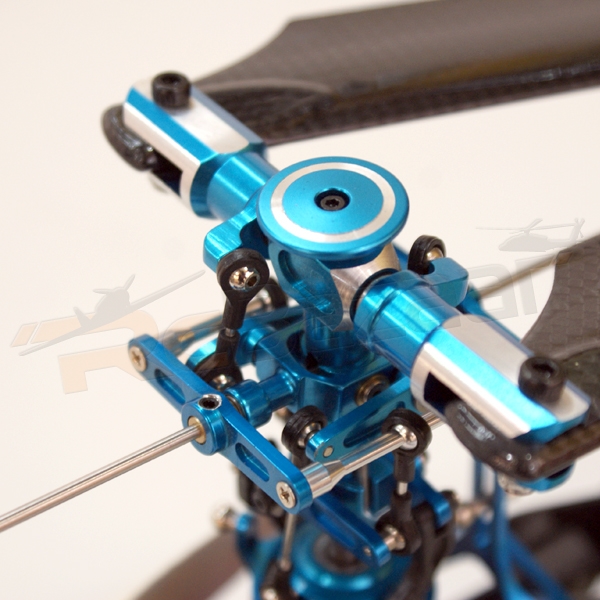

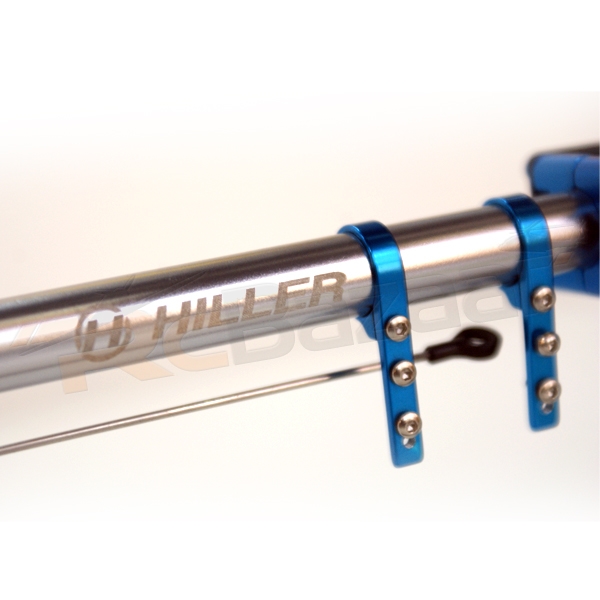

• High strength ball links and stainless steel linkage balls on the whole unit, feature wear resistance, anti-oxidization. • Tail rotor hub made of stainless steel, making it rigid and can take the torture for 3D flights easily. • Design Features: • Metal head stopper • Metal main rotor head assembly (4mm feathering shaft+ thrust bearing) • Precision main drive gear • Fiber-glass painted canopy • Metal anti rotation bracket • High strength Carbon Fibre main frames • Metal bearing blocks • High strength but flexible landing skids • Metal tail boom mount • Metal tail servo mount with dual fixing holes provided for different sizes of servos • Silky smooth tail pitch assembly • Carbon fibre vertical/horizontal stabilizers • Wear-resistance ball links
.
Specification:
• Length: 660mm
• Height: 230mm
• Main Blade Length: 325mm
• Main Rotor Diameter: 700mm
• Tail Rotor Diameter: 150mm
• Motor Pinion Gear: 12T/13T
• Main Drive Gear: 150T
• Autorotation Tail Drive Gear: 106T
• Tail Drive Gear: 25T
• Drive Gear Ratio:1:12.5:4.24/1:11.5:4.24
• Weight(w/o main blade):450g
• Flying Weight:Approx.730~760g
Package contains:
• Hiller 450 V2 kit x 1 set
• 325 Wooden 3DPRO Rotor Main Blades x 1 set
Electronics not included:
• Head holding gyro: 1pc
• Servo: 9g x 3 nos
• High speed rudder servo: 1 no
• 35A brushless ESC: 1 no
• Brushless motor 3700KV: 1 no
• 3S1P 11.1V 2100mAh 20C: 1 no
• Transmitter: 6 channel or more For Helicopter System
• Receiver: 6 channel or more
Colour of the packaging box might vary
Watch our complete set of build Videos of the Hiller 450V2 on youtube
